This document is about the technical specifications of C-51505NFJ-SLW-AC product, including general specifications, electrical specifications, optical specifications, I/O interfaces, testing, appearance standards, production batch code system, type number, application precautions, product handling precautions, warranty, etc.

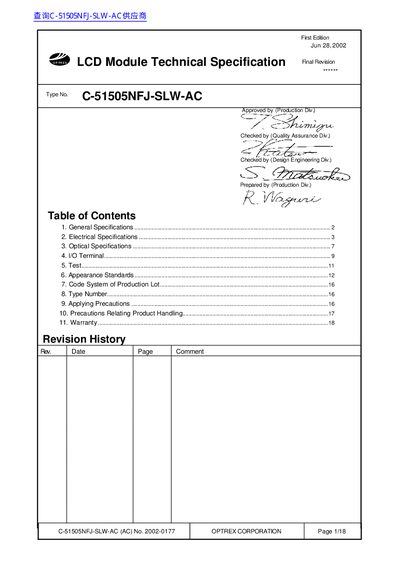

This document is a technical specification datasheet for the OPTREX C-51505NFJ-SLW-AC LCD module. It provides comprehensive details on the module's general specifications, including operating and storage temperatures, display format, and physical dimensions. The module features an 8-bit parallel data transfer interface and an LED backlight.
| Operating Temperature | -20°C ~ 70°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Display Format | 20 characters x 2 lines |
| Display Fonts | 5* 8dots |
| Viewing Area | 83.0 (W) x 18.6 (H) mm |
| Outline Dimensions | 116.0(W) * 37.0(H) x (15.6) (D) mm |
| Weight | 42.99 max. |
| LCD Type | F-STN / Black &White-mode / Transflective |
| Data Transfer | 8-bit parallel data transfer |
| Backlight | LED Backlight / White |
| Supply Voltage (Logic) | 4.5 - 5.5 V |
| Supply Current | 2.0 - 3.0 mA |
| Forward Current (LED) | 15 - 18 mA |
| Luminance of L (LED) | 125 cd/m² |
| LCD Driving Voltage (Typ) | 5.3 V |
| Response Time (Rise) | 80 - 160 ms |
| Response Time (Decay) | 110 - 200 ms |
The operating temperature range is from a minimum of -20°C to a maximum of 70°C.
The display format is 20 characters by 2 lines.
The module uses an LED Backlight which is White.
The supply voltage for the logic section is between 4.5V and 5.5V.
