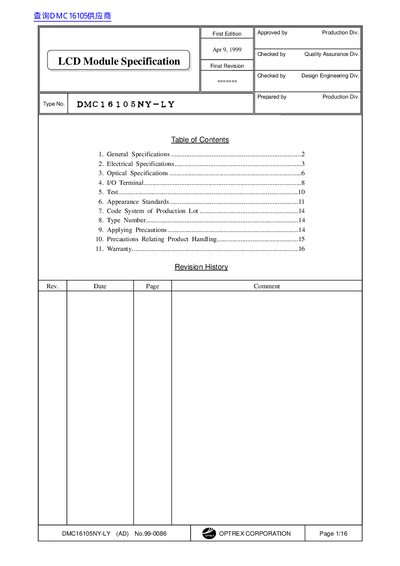

This document is the specification of DMC16105NY-LY.
This document is a technical specification sheet for the OPTREX DMC16105NY-LY, an STN (Super Twisted Nematic) LCD module featuring a yellow-green transmissive display and LED backlight. The datasheet details general specifications such as operating temperature ranges (-20°C to 70°C), physical dimensions, and display format (16 characters x 1 line).
The document provides comprehensive electrical characteristics including absolute maximum ratings for supply voltages up to 7.0V, DC input/output voltage levels, and AC timing parameters like enable cycle time and address setup times. It also covers optical specifications such as contrast ratio, response rise/decay times, and backlight luminance.
| Display Format | 16 characters = 1 line |
|---|---|
| Viewing Area | 64.5(W) X 13.0(H) mm |
| Operating Temp. | -20°C ~ max. 70°C |
| Display Type | STN / Yellow-mode / Transmissive |
| Backlight Color | Yellow-green |
| Supply Voltage (Logic) | 4.5 ~ 5.5 Vv |
| Contrast Ratio | Typ. 8 |
It displays 16 characters in a single line.
The module can operate at temperatures up to a maximum of 50°C.
The unit has a maximum weight of 45g.
