The JZX-18FF series is a high-performance intermediate relay produced by Hongfa Electric Co., Ltd. It has a switching capacity of 7A, 2 to 4 pole configurations, 1.5KV dielectric capacitor to contacts, various terminals, test buttons available, Au-claded contacts available, and conforms to the CE low voltage directive.

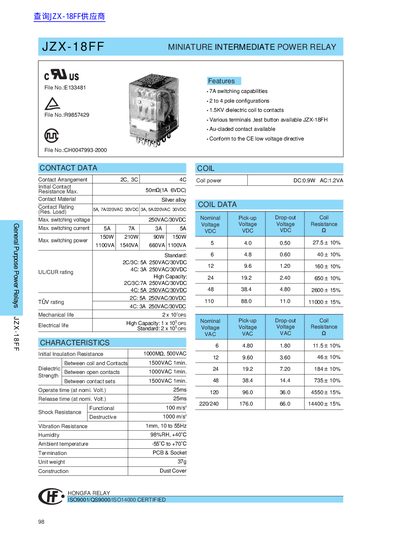

This document is a datasheet for the Hongfa JZX-18FF miniature intermediate power relay. It outlines key features such as 7A switching capabilities, 2 to 4 pole configurations, and compliance with the CE low voltage directive. The relay is available with various terminal types, including PCB and socket options, and offers both standard and high capacity versions.
| Switching Current | 7A |
|---|---|
| Pole Configurations | 2 to 4 pole |
| Dielectric Strength | 1.5KV |
| Contact Material | Silver alloy |
| Contact Rating (AC) | 7A 220VAC |
| Contact Rating (DC) | 3A 30VDC |
| Mechanical Life | 2x 10^7 ors |
| Electrical Life | 1x 10^5 ORS |
| Ambient Temperature | -55°C to +70°C |
| Coil Power (DC) | 0.9W |
| Coil Power (AC) | 1.2VA |
| Operating Time | 25ms |
The relay is available in 2, 3, and 4 pole configurations.
Yes, the product conforms to the CE low voltage directive.
The maximum switching current is 7A for AC and 3A for DC.
