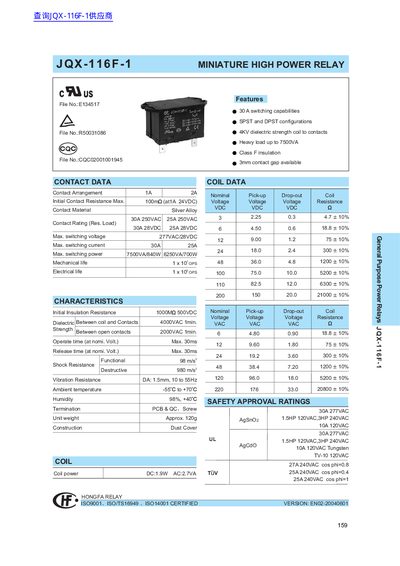

This document is a technical datasheet for the Hongfa JQX-116F-1 miniature high power relay. It provides comprehensive specifications including Class F insulation, 30A switching capabilities, and various contact arrangements such as SPST and DPST. The relay supports heavy loads up to 7500VA and features a 3mm contact gap option.
| Insulation Class | Class F |
|---|---|
| Switching Capability | 30A |
| Contact Gap | 3mm available |
| Max Switching Power | 7500VA |
| Dielectric Strength (Coil to Contacts) | 4KV |
| Ambient Temperature | -55°C to +70°C |
| Coil Power (DC) | 1.9W |
| Coil Power (AC) | 2.7VA |
The relay is available in SPST and DPST configurations.
The maximum switching voltage is 277VAC or 28VDC.
The maximum switching current is 30A.
The unit operates within an ambient temperature range of -55°C to +70°C.
