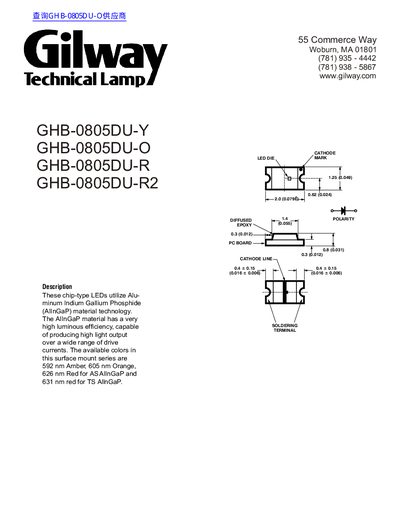

This document describes a chip-type LED that uses Aluminum Indium Gallium Phosphide (AlInGaP) material technology. The AlInGaP material has a very high luminous efficiency, capable of producing high light output over a wide range of drive currents. The available colors in this surface mount series are 592 nm Amber, 605 nm Orange, 626 nm Red for AS AlInGaP and 631 nm red for TS AlInGaP.
This document provides technical specifications for the Gilway GHB-0805DU series of chip-type Light Emitting Diodes (LEDs). The devices utilize Aluminum Indium Gallium Phosphide (AlInGaP) material technology to achieve high luminous efficiency across a wide range of drive currents. Available colors include 592 nm Amber, 605 nm Orange, and two variants of Red (626 nm for AS AllnGaP and 631 nm for TS AllnGaP).
| Power Dissipation | 75 mW (Y/O/R) / 81 mW (R2) |
|---|---|
| LED Junction Temperature | 95 °C |
| Operating Temperature Range | -30 to +85 °C |
These chip-type LEDs utilize Aluminum Indium Gallium Phosphide (AlInGaP) material technology.
The available colors are 592 nm Amber, 605 nm Orange, and Red (626 nm or 631 nm).
Drive currents above 5 mA are recommended for best long term performance.
