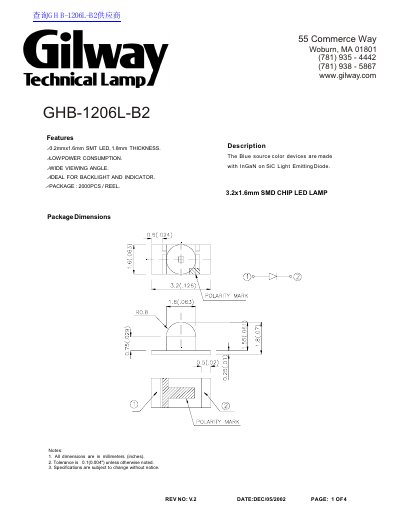

Gilway GHB-126L-B2 DATA SHEET

This product is a 3.2x1.6mm SMD CHIP LED LAMP with low power consumption and wide viewing angle, which is very suitable for backlight and indicator

Brand: Gilway
Category: LED Driver Controller
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 136 KB
Published: 11 June, 2012
Updated: 30 September, 2023
MD5 checksum: BFDFAB35F5CAD7A21CE48358F9D4AC44
PDF: Gilway GHB-126L-B2 DATA SHEET PDF

About this manual

This document is a datasheet for the Gilway GHB-1206L-B2, a 3.2mm x 1.6mm SMD chip LED lamp. The device features a blue source color made with InGaN on SiC and is designed for backlight and indicator applications. It offers low power consumption and a wide viewing angle, packaged in reels of 2000 pieces.

What's inside

Features
Absolute Maximum Ratings
Selection Guide
Electrical / Optical Characteristics
Recommended Soldering Pattern
Tape Specifications

Specifications

Package Dimensions	3.2mm x 1.6mm
Thickness	1.8mm
Package Quantity	2000PCS / REEL
Forward Current	30mA
Reverse Voltage	5V
Operating Temperature	-40C to +85C
Peak Forward Current	102mA
Power Dissipation	70mW

Frequently asked questions

What is the package type for the GHB-1206L-B2?

The device is a 3.2mm x 1.6mm SMT LED with a thickness of 1.8mm.

What is the material composition of the LED?

The blue source color devices are made with InGaN on SiC Light Emitting Diode.

What is the recommended number of reflow processes?

The number of reflow process shall be less than 2 times.
