Yamaha DTX900K Drum Trigger Module Installation Guide

About this manual

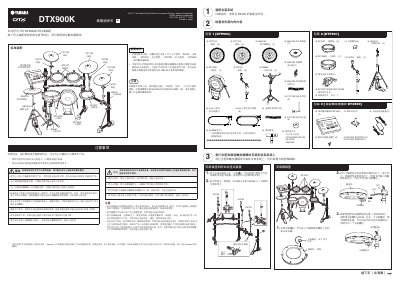

This document provides instructions for assembling the Yamaha DTX900K Drum Trigger Module. It covers installing the module onto the RS130 stand system, attaching cymbal mounts (PCY135/155), and positioning the kick and snare pads.

The guide also explains how to connect the drum trigger module to the various pad outputs using stereo cables and how to power on the unit. It references specific components like the HS740A hi-hat stand, KP125W kick pad, and XP120SD snare pad. This manual is written in Japanese.

What's inside

• Standard Assembly
• Check Contents
• Install Cymbal Mounts
• Install Drum Trigger Module
• Assemble Hi-Hat Stand
• Assemble Snare Stand
• Assemble Kick Pad
• Connect Pads to Module

Specifications

Frequently asked questions

What kits are required to assemble this device?

You must have the RS130 (Stand System), DTP900 (Cymbal Set), DTP901 (Pad Set), and DTX900 (Drum Trigger Module) kits.

What should I do to protect the floor before assembly?

Lay down a mat on the floor. If you do not have a mat, use hard cardboard from the packaging to prevent scratching.
