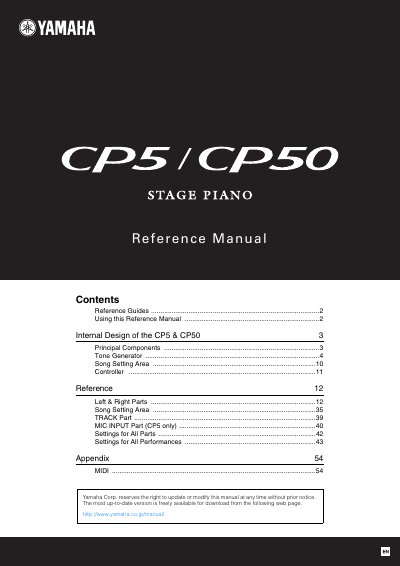

This document describes the internal design of your CP5 or CP50 and the various parameters that can be adjusted and set.
The document serves as a technical guide for the Yamaha CP5 and CP50 stage pianos. It explains how to use the PDF format features, such as jumping between sections using diagrams and bookmarks, to access specific information about the instrument's architecture.
The manual describes the internal design of the piano, dividing it into three main sections: the Tone Generator, the Song Setting Area, and the Controller. It details the signal flow from individual parts (such as Left/Right keys) through various blocks like Voice, Pre-Amplifier, Modulation Effect, and Power-Amplifier/Compressor to the final output via Reverb and Master Equalizer.
The internal design is divided into the Tone Generator, the Song Setting area, and the Controller.
The LEFT2, RIGHT2, and MIC INPUT parts are available on the CP5 only.
Each CP5 part is subdivided into four distinct blocks: Voice, Pre-Amplifier, Modulation Effect, and Power-Amplifier/Compressor.
