This document describes the various adjustment methods of FP9315/DFP9315 foot pedal, including beater angle adjustment, spring tension adjustment, hoop clamp adjustment and heel adjustment.

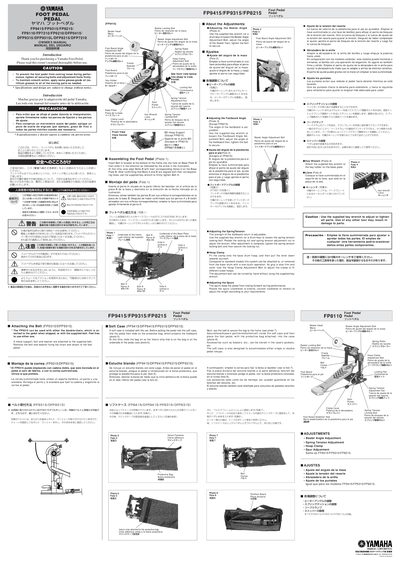

This owner's manual covers the setup and operation of various Yamaha Foot Pedal models. It includes detailed steps for assembling the pedal frame and attaching accessories like belts or chains. The guide also explains how to adjust critical components such as beater angle, footboard angle, spring tension, and hoop clamp fitment.
Use the supplied key wrench to loosen the Beater Angle Adjustment Bolt, adjust the angle of the beater, and then tighten the bolt.
Yes, the FP9315 can be used with either the double-chain attached when shipped or with the supplied belt.
Loosen the spring tension locking bolt and rotate the locking nut and spring tension adjustment nut to adjust the tension.
