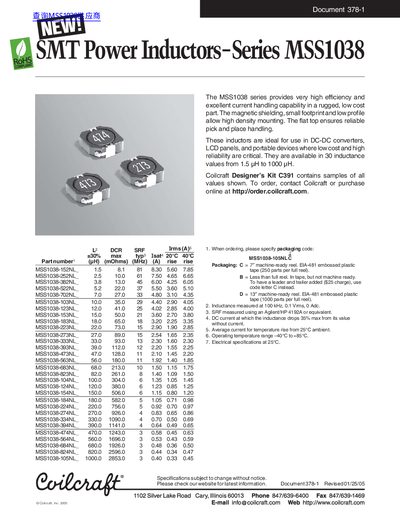

This document provides specifications for the SMT Power Inductors – Series MSS1038 produced by Coilcraft, Inc. in 2005. The series includes various models with different inductance, DC resistance, self-resonant frequency, maximum DC current, and average current characteristics. The products are suitable for operating temperatures ranging from -40°C to +85°C.
The MSS1038 series provides high efficiency and excellent current handling capability in a rugged, low-cost package. These magnetic shielded inductors feature a small footprint and low profile, making them ideal for high-density mounting in DC-DC converters, LCD panels, and portable devices.
The document lists 30 available inductance values ranging from 1.5 µH to 1000 µH. It includes detailed tables for part numbers, DC resistance (DCR), self-resonant frequency (SRF), saturation current, and temperature rise data, along with typical performance graphs.
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Inductance Values | 1.5 µH to 1000 µH |
| Weight | 15g |
Inductance is measured at 100 kHz, 0.1 Vrms, and 0 Adc.
It is the average current for temperature rise from 25°C ambient.
