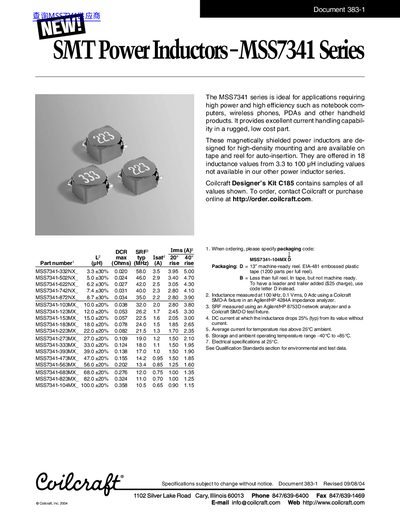

This document provides specifications and characteristics of the SMT Power Inductors MSS7341 series. These inductors are ideal for applications requiring high power and high efficiency, such as notebook computers, wireless phones, PDAs, and other handheld products. They offer excellent current handling capability in a rugged, low-cost part. These magnetically shielded power inductors are designed for high-density mounting and are available on tape and reel for auto-insertion. They are offered in 18 inductance values ranging from 3.3 to 100 µH, including values not available in other power inductor series.
The MSS7341 series of SMT power inductors is designed for high‑power, high‑efficiency applications such as notebook computers, wireless phones, PDAs and other handheld devices. The inductors are magnetically shielded, support high‑density mounting, and are offered in 18 values from 3.3 µH to 100 µH.
The parts are supplied on tape and reel for automated insertion (1200 parts per 13‑inch reel, 16 mm tape width). Electrical specifications include low DCR, high self‑resonant frequency, and rated currents up to 5 A, with an operating temperature range of –40 °C to +85 °C. Performance graphs for inductance versus frequency, current, and temperature rise are included.
| Inductance range | 3.3 µH – 100 µH |
|---|---|
| Operating temperature range | –40 °C to +85 °C |
| Packaging | Tape and reel, 1200 parts per 13" reel, 16 mm tape width |
The series offers 18 inductance values ranging from 3.3 µH to 100 µH.
They are rated for storage and ambient temperatures from –40 °C to +85 °C.
They are supplied on tape and reel, with 1200 parts per 13‑inch reel and a 16 mm tape width.
