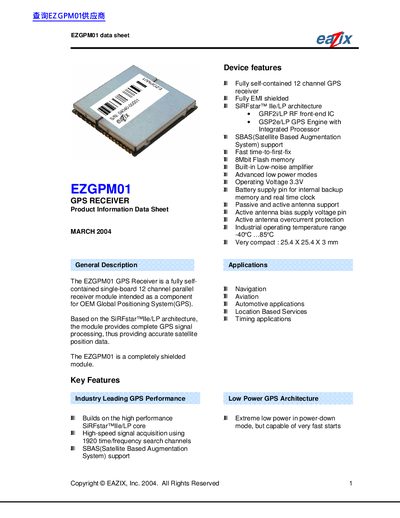

This document is about EZGPM01 GPS RECEIVER data sheet, the product has fully self-contained 12 channel GPS receiver, fully EMI shielded, SiRFstar™ IIe/LP architecture, GRF2i/LP RF front-end IC, GSP2e/LP GPS Engine with Integrated Processor, SBAS(Satellite Based Augmentation System) support, fast time-to-first-fix, 8Mbit Flash memory, built-in Low-noise amplifier, advanced low power modes, operating voltage 3.3V, battery supply pin for internal backup memory and real time clock, passive and active antenna support, active antenna bias supply voltage pin, active antenna overcurrent protection, industrial operating temperature range -40ºC …85ºC and very compact 25.4 X 25.4 X 3 mm size.
The EZGPM01 is a fully self-contained single-board 12 channel parallel receiver module intended as a component for OEM Global Positioning System (GPS). Based on the SiRFstar Ile/LP architecture, it provides complete GPS signal processing and accurate satellite position data. The module is completely shielded against EMI.
| Channels | 12 |
|---|---|
| Operating Voltage | 3.3V |
| Flash Memory | 8Mbit |
| Temperature Range | -40°C ... 85°C |
| Dimensions | 25.4 X 25.4 X 3mm |
| Position Accuracy (SA off) | < 10 meters CEP |
| Time-To-First-Fix (Cold Start) | < 45 seconds |
The MOQ (Minimum Order Quantity) is 1k units.
Yes, it supports Satellite Based Augmentation System (SBAS).
