This document describes an 80GHz gain bandwidth product with integrated design optimized performance for high bit rate applications up to 10 Gb/s. It has high sensitivity and overload power, as well as features such as optical return loss and temperature monitoring. The product is intended for use as an optical receiver in DWDM, SONET, SDH fiber systems.

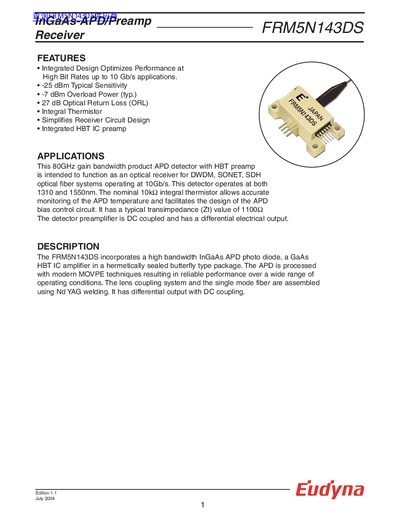

The Eudyna FRM5N143DS is an integrated InGaAs-APD detector with an HBT preamplifier designed for high-bit-rate optical fiber applications up to 10 Gb/s. It operates at wavelengths of 1310 nm and 1550 nm and features a hermetically sealed butterfly package with a differential electrical output.
| Typical Sensitivity | -25 dBm |
|---|---|
| Overload Power | -7 dBm |
| Optical Return Loss | 27 dB |
| Operating Temperature | 0 to +70 °C |
| APD Responsivity (1550nm) | 0.7 A/W |
| AC Transimpedance | 1100 Ω |
| Bandwidth | 8.0 GHz |
| Power Supply Current | 130 mA |
| Thermistor Resistance | 10 kΩ |
The detector operates at both 1310 and 1550nm.
It is intended for applications up to 10 Gb/s.
The typical transimpedance (Zt) value is 1100 Ω.
