This document provides information about the CT-6MP100 supplier and describes some features and characteristics of the product.

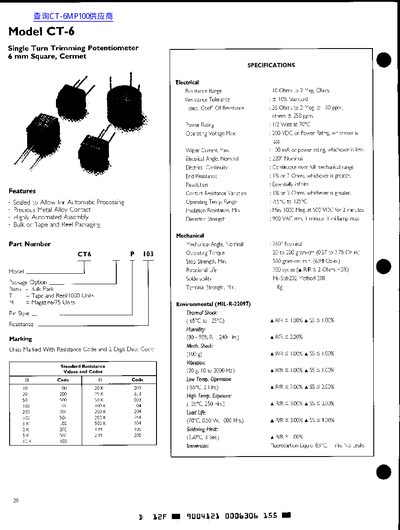

This document provides technical specifications for the Each CT-6 series of single turn sealed cermet trimming potentiometers. The series includes various models (CT-6, CT-6P, CT-6W, CT-6R, CT-6V, CT-6S, CT-6X, CT-6H, CT-6F, CT-6N, CT-6G, CT-6MS, CT-6TH, CT-6M, CT-6MP, and CT-6MS) designed for automatic processing with precious metal alloy contacts.
The datasheet details electrical characteristics such as resistance range (10 Ohms to 2 Megohms), tolerance (±10% standard), and power rating. It also outlines mechanical dimensions for top and side adjust configurations, available in both metric and imperial units, along with packaging options including bulk, tape and reel, and plastic magazines.
| Resistance Range | 10 Ohms to 2 Meg. |
|---|---|
| Resistance Tolerance | ±10% Standard |
| Temp. Coeff. Of Resistance | 50 Ohms to 2 Meg. + 100 ppm |
| Power Rating | 1/2 Watt at 70°C |
| Operating Voltage Max. | 200 VDC or Power Rating |
| Wiper Current Max. | 200 mA or power rating |
| Electrical Angle, Nominal | 220° |
| Operating Temp. Range | -55°C to 125°C |
| Insulation Resistance, Min. | > Min. .000 Meg. at 500 VDC |
| Dielectric Strength | 900 VAC rms, 1 minute |
| Mechanical Angle, Nominal | 260° |
| Operating Torque | 20 to 200 gram-cm |
| Model Rotational Life | 200 cycles |
| Resistance (65°C to 125°C) | 1 kg |
The resistance range is from 10 Ohms to 2 Megohms.
The standard resistance tolerance is ±10%.
The maximum operating voltage is 200 VDC or the power rating, whichever is less.
The nominal electrical angle is 220 degrees.
