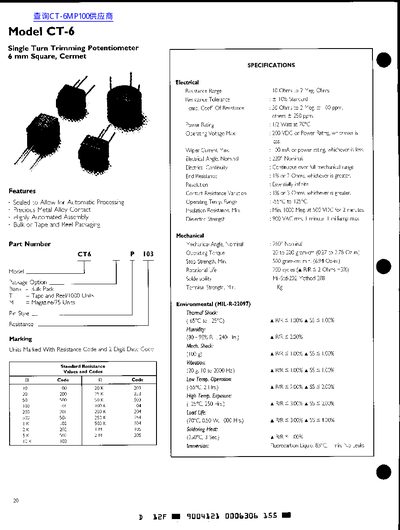

This document provides technical specifications for the Each Manufacturing Company CT-6 series of single turn trimming potentiometers. The components feature a 6 mm square cermet construction with precious metal alloy contacts and are sealed to allow for automatic processing. The datasheet covers various models including top and side adjust configurations (CT-6, CT-6P, CT-6S, etc.) with specific dimensions and electrical ratings.
| Resistance Range | 10 Ohms to 2 Meg. |
|---|---|
| Resistance Tolerance | 10% Standard |
| Temp. Coeff. Of Resistance | 50 Ohms to 2 Meg. + 100 ppm |
| Power Rating | 1/2 Watt at 70°C |
| Operating Voltage Max. | 200 VDC or Power Rating |
| Wiper Current Max. | 200 mA or power rating |
| Electrical Angle, Nominal | 220° |
| Operating Temp. Range | -55°C to 125°C |
| Mechanical Angle, Nominal | 260° |
| Operating Torque | 20 to 200 gram-cm |
The maximum operating voltage is 200 VDC or the power rating, whichever is less.
The minimum insulation resistance is .000 Meg. at 500 VDC for 2 minutes.
There are 1000 units packaged per reel.
