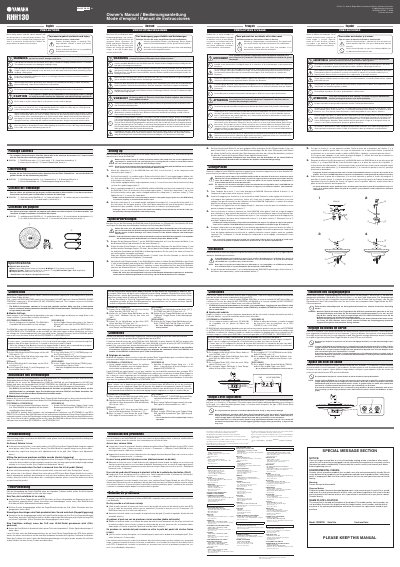

This document is an owner's manual for a product, providing information on the safe and proper use of the product. Particularly for children and young users, parents or instructors should teach them the proper manner in which to use the device.
The Yamaha RHH130 is an electronic drum pad designed to replace a real hi-hat cymbal. Before using the device, users must read this manual carefully to ensure safe operation and prevent injury or damage to the equipment.
To set up the product, attach the clamp base assembly to the main unit and mount it onto a stable hi-hat stand shaft. The manual recommends using Yamaha HS series stands (such as the HS650 or HS740) for compatibility. Users should adjust the clutch base height according to their playing style while ensuring the pad remains horizontal.
| Size (without clamp) | 632 x 106 (H) mm |
|---|---|
| Weight (without clamp) | 2.3 kg |
| Sensor System | Trigger sensor (piezo) x 1, switch x 1 (edge) |
| Controller Type | Multi-step Switch |
| Output jack | Standard stereo phone jack x 2 |
The manual recommends using Yamaha HS series stands, specifically the HS650 or HS740.
Remove the hi-hat clutch and cymbal support that came with the stand, as they are not needed for use.
