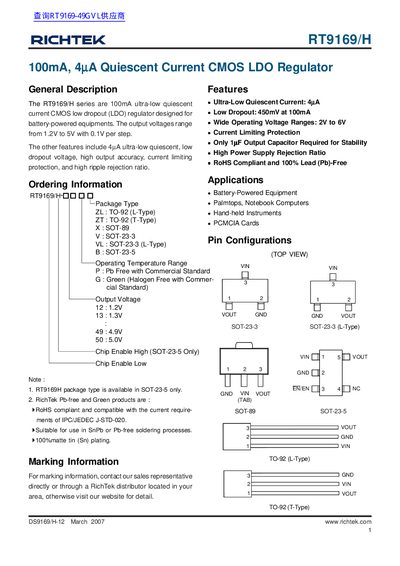

RT9169/H is a 100mA ultra-low quiescent current CMOS low dropout (LDO) regulator designed for battery-powered equipments. The output voltages range from 1.2V to 5V with 0.1V per step. The other features include 4μA ultra-low quiescent, low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.
The RT9169/H series are 100mA ultra-low quiescent current CMOS low dropout (LDO) regulators designed for battery-powered equipment. The output voltages range from 1.2V to 5V with 0.1V per step. Key features include 4uA ultra-low quiescent current, low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.
| Maximum Output Current | 100 mA |
|---|---|
| Quiescent Current | 4uA |
| Dropout Voltage | 450mV at 100mA |
| Operating Voltage Range | 2V to 6V |
| Output Voltage Range | 1.2V to 5V |
| Thermal Shutdown Protection | 125°C |
The device features an ultra-low quiescent current of 4uA.
The maximum output current is 100 mA.
Yes, the product is RoHS compliant and 100% Lead (Pb)-Free.
