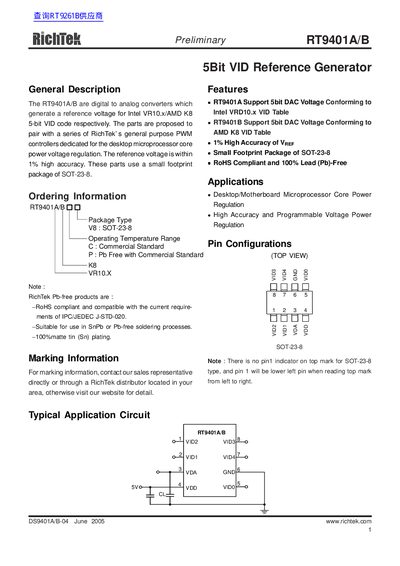

The RT9401A/B are digital to analog converters which generate a reference voltage for Intel VR10.x/AMD K8 5-bit VID code respectively. The parts are proposed to pair with a series of RichTek's general purpose PWM controllers dedicated for the desktop microprocessor core power voltage regulation. The reference voltage is within 1% high accuracy. These parts use a small footprint package of SOT-23-8.
The RT9401A/B are digital‑to‑analog converters that generate a reference voltage for Intel VR10.x and AMD K8 5‑bit VID codes. They are intended for desktop motherboard microprocessor core power regulation and feature a small SOT‑23‑8 footprint with 1% high accuracy.
The document provides ordering information, pin configurations, absolute maximum ratings, recommended operating conditions, electrical characteristics, typical operating curves, and mechanical dimensions. It also includes contact details for Richtek Technology Corp.
| Package Type | SOT-23-8 |
|---|---|
| Accuracy | 1% High Accuracy |
| Supply Input Voltage (typical) | 5 V ±10% |
| Supply Current | 2.5 mA |
| Output Voltage Accuracy | ±10 mV |
| Operating Temperature Range | -40 °C to 125 °C |
| ESD Susceptibility (HBM) | 2 kV |
The RT9401A/B is supplied in an SOT‑23‑8 surface‑mount package.
The typical supply input voltage is 5 V (±10%).
Yes, they are RoHS compliant and 100% lead‑free.
