This file is about SMAJ series surface mount transient voltage suppressor parameters, including rated power, peak current, maximum instantaneous voltage, operating temperature range.

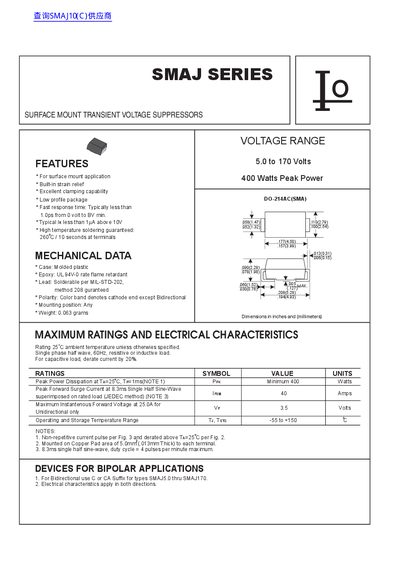

The document details the specifications for the IO SMAJ Series Surface Mount Transient Voltage Suppressors (TVS). It covers unidirectional and bidirectional applications with a peak power dissipation of up to 400 Watts at 25°C ambient temperature. Key features include fast response times, low profile packages, and built-in strain relief.
| Peak Power Dissipation at T=25 C, T=1ms | 400 Watts |
|---|---|
| Operating and Storage Temperature Range | -55 to +150 C |
| Peak Forward Surge Current at 8.3ms Single Half Sine-Wave Maximum | 40 Amps |
| Package Type | DO-214AC(SMA) |
The minimum peak power dissipation at T=25 C and T=1ms is 400 Watts.
The device operates within a temperature range of -55 to +150 C.
For capacitive load applications, the current must be derated by 20%.
