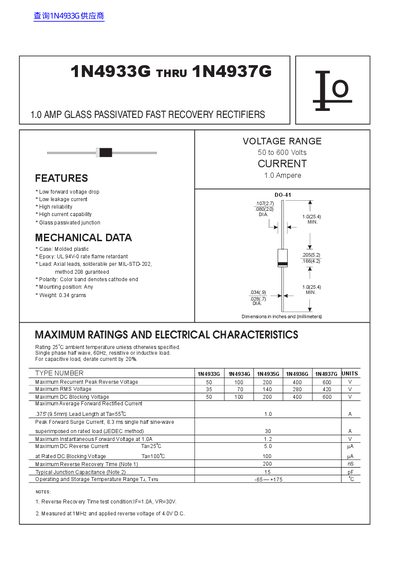

Hales Semiconductor 1N4933G-1N4937G Fast Recovery Rectifiers Datasheet

1.0 AMP GLASS PASSIVATED FAST RECOVERY RECTIFIERS

Brand: IO
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 86 KB
Published: 07 June, 2012
Updated: 30 September, 2023
MD5 checksum: 424A323D526970858EF1BE5F321FEF19
PDF: Hales Semiconductor 1N4933G-1N4937G Fast Recovery Rectifiers Datasheet PDF

About this manual

This document provides technical specifications for the Hales Semiconductor 1N4933G through 1N4937G series of 1.0 Amp glass passivated fast recovery rectifiers. Key features include low forward voltage drop, high reliability, and a UL 94-0 rated molded plastic case.

What's inside

Features
Mechanical Data
Voltage Range
Maximum Ratings
Electrical Characteristics
Ratings and Characteristic Curves

Specifications

Current Rating	1.0 Ampere
Voltage Range	50 to 600 Volts
Case Material	Molded plastic
Flame Retardancy	UL 94-0
Maximum Reverse Recovery Time	200 ns

Frequently asked questions

What is the current rating of these rectifiers?

The maximum average forward rectified current is rated at 1.0 Ampere.

What type of passivation is used?

These rectifiers utilize a glass passivated junction.
