This document describes the symbol ratings unit and electrical characteristics of the SDK08 model. It includes the minimum, typical, and maximum values of features such as V(BR)DSS, IDSS, VTH, Re(yfs), RDS(ON), etc. Additionally, it also includes the maximum ratings of the model, such as VDSS, IGSS, PT, EAS, etc.

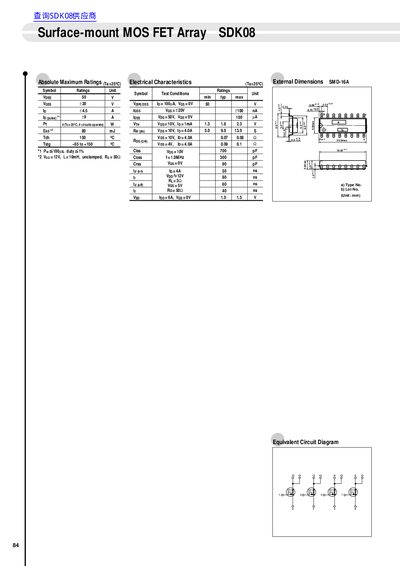

This document provides technical specifications for the SDK08 Surface-mount MOS FET Array. It includes a table of electrical characteristics and absolute maximum ratings, such as drain-source voltage (VDss) and gate-source voltage (VGss). The package type is identified as SMD-16.
| Package Type | SMD-16 |
|---|---|
| Drain-Source Voltage (VDss) | 50 V |
| Gate-Source Voltage (VGss) | +20 V |
| Pulse Drain Current (ID{pulse}) | 100 A |
| Total Power Dissipation (PT) | 4 W |
| Operating Temperature Range (Tstg) | -55 to +150 C |
| Input Capacitance (Ciss) | 700 pF |
| Output Capacitance (Coss) | 300 pF |
| Reverse Transfer Capacitance (Crss) | 90 pF |
The maximum drain-to-source voltage is 50 volts.
The storage temperature ranges from -55 to +150 degrees Celsius.
