This document is a checklist for the installation of Agilent Technologies GC/MS/ALS system

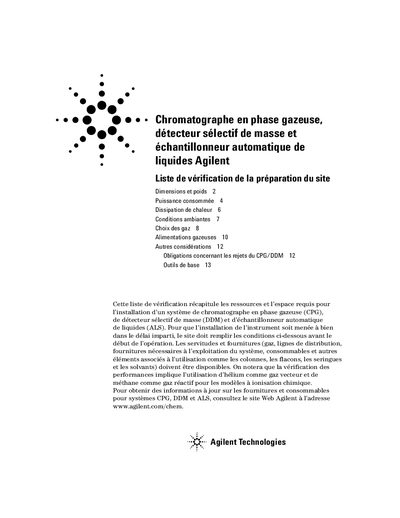

This document is a French site preparation checklist (Liste de vérification) designed to ensure the proper installation of an Agilent system comprising a Gas Chromatograph (GC), Mass Selective Detector (MSD), and Liquid Autosampler (ALS). It outlines the necessary resources, space requirements, and pre-installation conditions that must be met before operation begins. This manual is written in French.
| Height (DDM series 5975) | 41 cm (16 in) |
|---|---|
| Width (DDM series 5975) | 30 cm (12 in) |
| Depth (DDM series 5975) | 54 cm (22 in) |
| Operating Temperature Range | 20 to 27°C |
A complete system requires approximately 244 cm (8 ft) of free space on the laboratory bench.
The maximum heat dissipation for a standard oven ramp on an Agilent 7890A is 7681 BTU/h.
