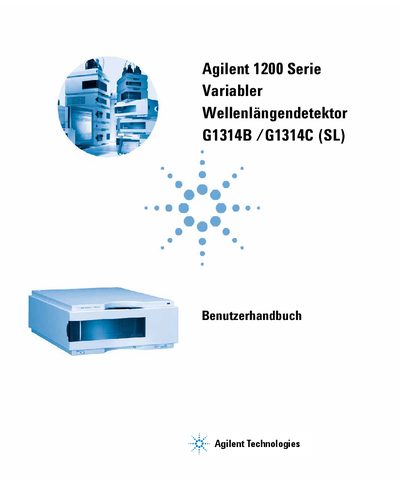

Agilent 1200 Serie Variabler Wellenlängendetektor G1314B /G1314C (SL) Benutzerhandbuch Manual

This is the user manual for the Agilent 1200 Series Variable Wavelength Detector G1314B / G1314C (SL)

Brand: Agilent
Category: Other Electronics
Document type: User Manual
Language: German
Pages: 136
File format: PDF
File size: 3.6 MB
Published: 08 June, 2012
Updated: 30 September, 2023
Models: G1314B, G1314C
MD5 checksum: 99074FFC8670C83C5AF823288A3801DB
PDF: Agilent 1200 Serie Variabler Wellenlängendetektor G1314B /G1314C (SL) Benutzerhandbuch Manual PDF

About this manual

This manual provides instructions for the Agilent Series 1200 Variable Wavelength Detector, available in two versions: the standard G1314B and the high data rate G1314C (SL). It covers the optical system, electrical connections, and internal components, along with specific guidance for using the optional G1323B Control Module. This manual is written in German.

What's inside

Introduction to the Detector
Specifications and Environmental Requirements
Installation of the Detector
Using the Detector
Optimizing the Detector
Troubleshooting and Diagnostics
Maintenance and Repair
Replacement Parts
Safety Information
Appendix

Specifications

Wavelength Range	190 to 600 nm
Lamp Type	Deuterium
Document Part Number	61314-92010

Frequently asked questions

Can the G1314C SL be operated in standard mode?

Yes, it can be operated in standard mode using the G1323B Control Module.

What is the wavelength accuracy feature?

It includes an integrated Holmium oxide filter for quick wavelength accuracy checks.
