SCX series pressure sensors provide a very cost effective solution for pressure applications that require high accuracy over a wide temperature range.

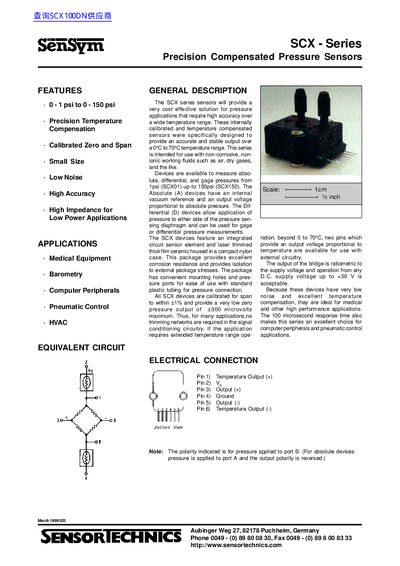

The SenSym SCX Series consists of precision compensated pressure sensors designed for high accuracy over a wide temperature range. These internally calibrated devices are intended for use with non-corrosive, non-ionic working fluids such as air and dry gases. They feature an integrated circuit sensor element housed in a compact nylon case, providing excellent corrosion resistance and isolation from external stresses.
| Operating Temperature Range | 0°C to 70°C |
|---|---|
| Supply Voltage | up to +30 V |
| Response Time | 100 microsecond |
| Zero Pressure Output | +300 microvolts maximum |
| Calibration Accuracy | within +1% |
The devices are intended for use with non-corrosive, non-ionic working fluids such as air, dry gases, and the like.
No, they generally do not require trimming networks because they are calibrated for span to within +1% and have a low zero pressure output.
The devices can operate from any D.C. supply voltage up to +30 V.
