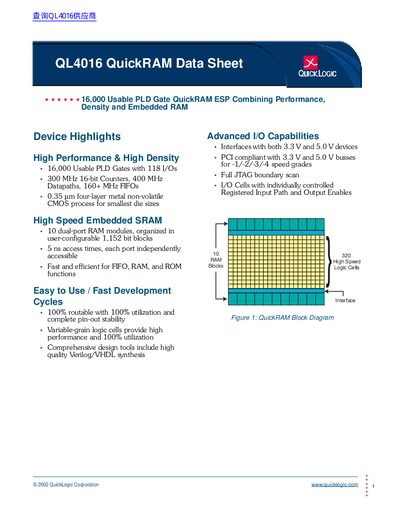

This data sheet provides detailed information on the performance, density, and embedded RAM features of the QuickLogic QL4016 QuickRAM ESP product.
The QuickLogic QL4016 is a member of the QuickRAM family of Embedded Standard Products (ESPs), combining FPGA logic with Dual-Port SRAM modules. It features 16,000 usable PLD gates and 10 Dual Port RAM modules, each containing 1,152 bits, for a total of 11,520 bits. The device is fabricated on a 0.35 um four-layer metal non-volatile CMOS process using QuickLogic's patented ViaLink technology.
| Usable PLD Gates | 16,000 |
|---|---|
| I/O Pins | 118 |
| Logic Cells | 320 |
| RAM Modules | 10 |
| Total RAM Bits | 11,520 |
| RAM Block Size | 1,152 bits |
| Process Technology | 0.35 um four-layer metal |
The device contains 10 Dual Port RAM modules with 1,152 bits each, totaling 11,520 bits.
RAM modules can be configured into one of four modes: 64 x 18, 128 x 9, 256 x 4, or 512 x 2.
Yes, it interfaces with both 3.3 V and 5.0 V devices and is PCI compliant for both voltage levels.
