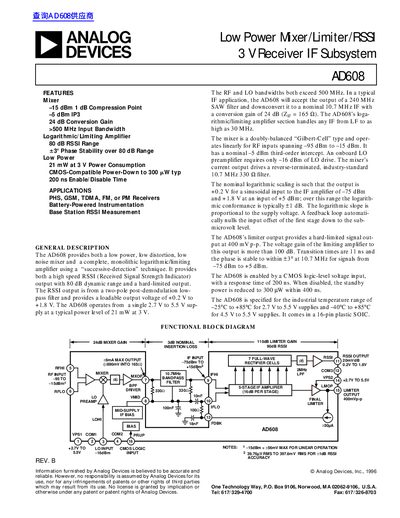

AD608 is a low power mixer/limiter/RSSI 3V receiver IF subsystem
The AD608 is an integrated circuit combining a low distortion, low noise doubly-balanced Gilbert-Cell mixer with a complete monolithic logarithmic/limiting amplifier. It utilizes a successive-detection technique to provide a high-speed RSSI output and a hard-limited signal output.
Designed for applications such as PHS, GSM, TDMA, FM, or PM receivers, the device operates from a single 2.7 V to 5.5 V supply with typical power consumption of 21 mW at 3 V. It features an onboard LO preamplifier and is specified for industrial temperature ranges.
| Supply Voltage Range | 2.7 V to 5.5 V |
|---|---|
| Power Consumption (Typical) | 21 mW at 3 V |
| Conversion Gain | 24 dB |
| Input Bandwidth (RF and LO) | >500 MHz |
| RSSI Range | 80 dB |
| Phase Stability | +3° over 80 dB range |
| Power-Down Current | 300 pW typ |
The device is specified for an industrial temperature range of -25°C to +85°C.
It operates from a single 2.7 V to 5.5 V supply.
The typical power level is 21 mW at 3 V.
