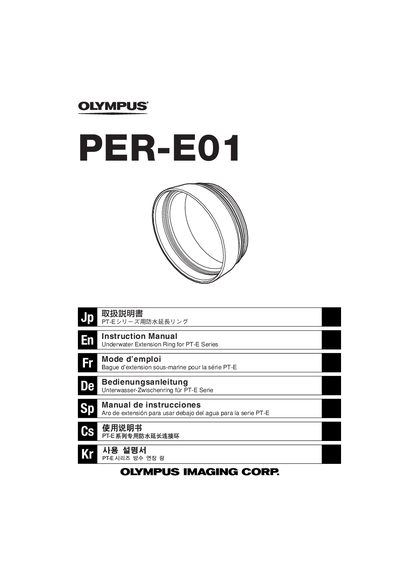

Olympus PER-E01 Underwater Extension Ring Instruction Manual

About this manual

The Olympus PER-E01 is an underwater extension ring specifically designed for the PT-E Series Waterproof Protector. It allows users to attach a ZUIKO DIGITAL 1.4X Teleconverter EC-14 between the camera body and the waterproof protector, enabling underwater photography with extended focal length.

This document details the installation and removal procedures for the PER-E01 ring within the assembly of the PT-E Series protector and PPO-E Series lens port. It also outlines safety precautions, including depth limitations (up to 60m), warnings against using zoom or manual focus underwater, and instructions on handling O-rings and silicone grease to ensure water tightness. This manual is written in Japanese.

What's inside

• Product Description
• Safety Precautions
• Parts Identification
• Installation Instructions
• Removal Instructions
• Camera Loading

Frequently asked questions

What is the maximum depth for using this extension ring?

The product is designed for use in water up to a depth of 60 meters.

Which rear converter is compatible with this ring?

This product is dedicated only to the ZUIKO DIGITAL 1.4X Teleconverter EC-14.

Can I use zoom or manual focus while the ring is attached?

No, zoom and manual focus operations cannot be performed in water when this product is used.
