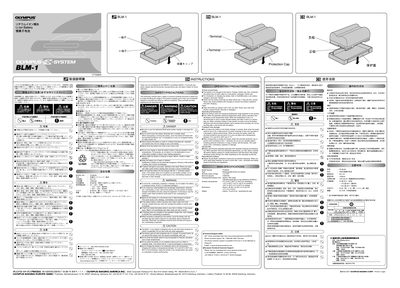

This is an instruction manual for Olympus BLM-1 lithium-ion battery. It introduces the use, maintenance, charging, discharge, life and recycling of the battery.
This manual provides safety precautions and operating instructions for the Olympus BLM-1 rechargeable lithium ion battery. It details how to handle the battery safely, such as covering terminals with a protection cap during transport and avoiding exposure to water or high temperatures. The document also explains that the battery is not charged at the factory and must be charged before first use.
| Model Number | PS-BLM1 |
|---|---|
| Type | Rechargeable lithium ion battery. |
| Nominal output voltage | 7.2V DC |
| Nominal capacity | 1500mAh |
| Charging/discharging count | Approx. 500 cycles. |
| Recharging temperature range | 10°C to 40°C (32°F to 104°F) |
| Operating temperature range | -10°C to 60°C (14°F to 140°F) |
| Storage temperature range | -20°C to 35°C (-4°F to 95°F) |
| Dimensions | Approx. 39 (W) x 55 (D) x 21.5 (H) mm. |
| Weight | Approx. 75 g.{2.6 oz). (excluding the cap) |
No, the battery is not charged at the factory and must be charged before use.
Swallowing a battery can be extremely dangerous, so you must see a doctor immediately.
Battery capacity is usually reduced by half after about 500 charge/discharge cycles.
No, the BLM-1 Li-ion battery is designed only for use with cameras for which it is specified.
