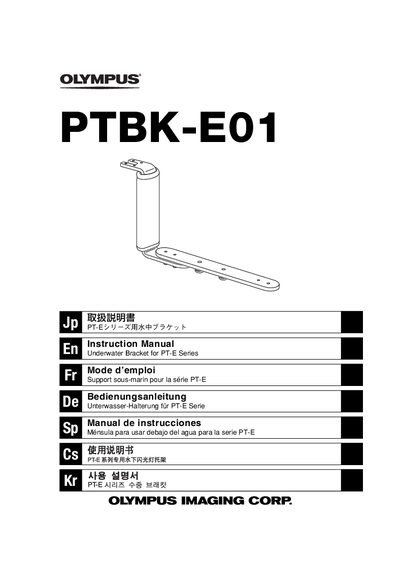

This document is the instruction manual for the underwater bracket for the PT-E series. It provides information on how to use the bracket and important precautions.
The Olympus PTBK-E01 is an underwater bracket designed exclusively for use with the PT-E series waterproof case. It allows users to attach optional digital camera or electronic flash waterproof protectors by combining them with a separately available short arm (PTSA-01). The bracket features an adjustable grip that can be extended or contracted using provided clamping screws and a wrench.
| Dimensions | Width 308 mm x Height 155 mm x Depth 40 mm / Thickness 6 mm (max.) |
|---|---|
| Weight | 350 grams |
This product is an underwater bracket for use with the PT-E series underwater case.
Yes, you can attach an optional short arm (PTSA-01) to the bracket's grip.
Loosen the two bracket grip clamping screws using the provided wrench, slide the grip to the desired length, and then tighten the screws.
