The EVAL-ADE7756EB is an evaluation board for the ADE7756 energy metering IC, featuring screw terminals for easy connection of various external transducers, PCB sockets for easy modification of signal conditioning components, and LED indicators on logic outputs CF, ZX, SAG and IRQ.

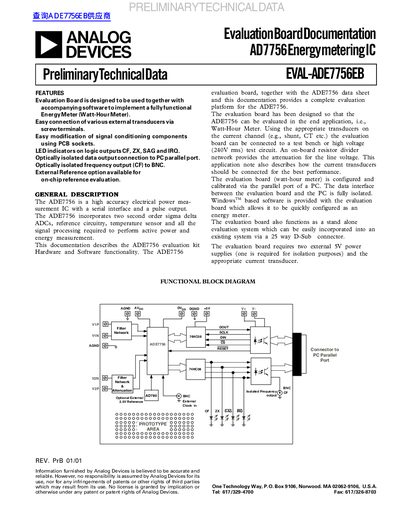

The document provides preliminary technical data for the EVAL-ADE7756EB, an evaluation board designed to be used with accompanying software to create a fully functional Energy Meter (Watt-Hour Meter). The board features easy connection of external transducers via screw terminals and allows for modification of signal conditioning components using PCB sockets. It includes LED indicators on logic outputs and optically isolated data output connections.
The evaluation board is designed to be used together with accompanying software to implement a fully functional Energy Meter (Watt-Hour Meter).
The evaluation board is configured and calibrated via the parallel port of a PC using Windows based software.
The evaluation board requires two external 5V power supplies, one of which is required for isolation purposes.
