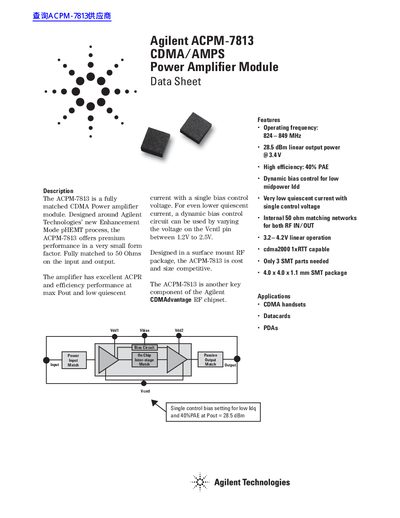

The ACPM-7813 is a fully matched CDMA Power amplifier module designed around Agilent Technologies’ new Enhancement Mode pHEMT process. It offers premium performance in a very small form factor. Fully matched to 50 Ohms on the input and output. The amplifier has excellent ACPR and efficiency performance at max Pout and low quiescent current.
The Agilent ACPM-7813 is a fully matched CDMA Power Amplifier Module designed around Agilent Technologies' Enhancement Mode pHEMT process. It offers premium performance in a small surface mount package, featuring excellent ACPR and efficiency at maximum output power with low quiescent current.
| Operating Frequency (CDMA) | 824 — 849 MHz |
|---|---|
| Linear Output Power | 28.5 dBm |
| Power Added Efficiency (Max) | 40% |
| Supply Voltage | 3.2-4.2V |
| Package Dimensions | 4.0x4.0x 1.1 mm |
| Maximum Supply Voltage | 6.0V |
The module provides a linear output power of 28.5 dBm.
The recommended operating range for Vdd is 3.2 to 4.2 V.
Yes, it is cdma2000 1xRTT capable.
