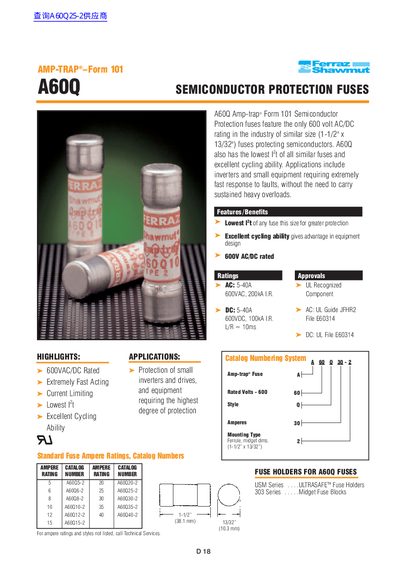

The A60Q Amp-trap® Form 101 Semiconductor Protection fuses feature the only 600 volt AC/DC rating in the industry for similar size (1-1/2" x 13/32") fuses. They are designed to protect semiconductors with excellent cycling ability and extremely fast response to faults, making them suitable for inverters and small equipment requiring high degrees of protection without sustaining heavy overloads.
Key features include the lowest I²t of any fuse this size, providing greater protection. The fuses are available in ratings from 5A to 40A with UL Recognized status for AC applications (600VAC, 200kA LR) and UL File E60314 for DC applications (600VDC, 100kA LR). The document provides tables for melting time/current data, clearing times, and watts loss at various ratings.
| Voltage Rating | 600V AC/DC |
|---|---|
| Fuse Size | 1-1/2" x 13/32" |
| Current Ratings | 5-40A |
| Mounting Type | Ferrule, midget dims |
It features the lowest I²t of all similar fuses and excellent cycling ability.
They are used in inverters and small equipment requiring extremely fast response to faults.
