The document is about A60X Amp-trap® Form 101 Semiconductor Protection fuses, which is a fast-acting overcurrent protection device, it can be used to protect heavy traction and electrochemical equipment as well as rectifiers and other heavy-duty equipment, it has low l2t and optional display, which can help users choose suitable protection devices

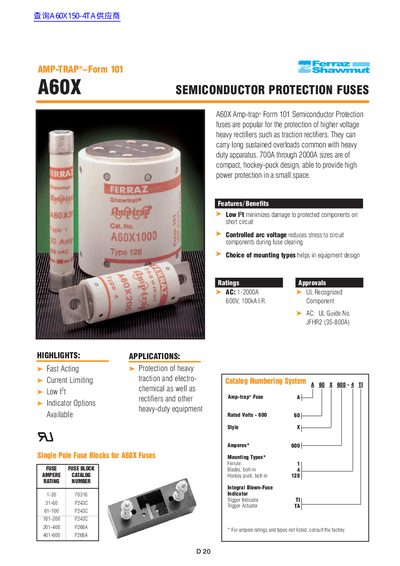

The A60X series of semiconductor protection fuses from Ferraz Shawmut are designed for heavy‑duty equipment such as traction rectifiers, electro‑chemical systems and other high‑current applications. They offer fast‑acting current limiting and low fault‑time characteristics to protect sensitive components.
Key data include a 600 V rating, ampere capacities from 1 A up to 2000 A, multiple mounting styles (ferrule, bolt‑in blades, hockey‑puck, integral indicator, trigger actuator) and detailed loss versus current curves for both Type 4 and Type 128 constructions.
| Rated Voltage | 600 V |
|---|---|
| Ampere rating range | 1 A – 2000 A |
| Mounting Types | Ferrule, blades bolt‑in, hockey‑puck bolt‑in, integral blown‑fuse indicator, trigger indicator, trigger actuator |
The fuses are rated for 600 V.
Available mounting types include ferrule, blades bolt‑in, hockey‑puck bolt‑in, integral blown‑fuse indicator, trigger indicator, and trigger actuator.
