This document describes the features and characteristics of the Automotive Twin PCB Power Relay, including a 20 Amp continuous current capacity, up to 60 Amp switching capacity, four different contact materials available, six different contact forms, designed for high inrush applications, UL Class F insulation available, PC617 dust cover or sealed version available.

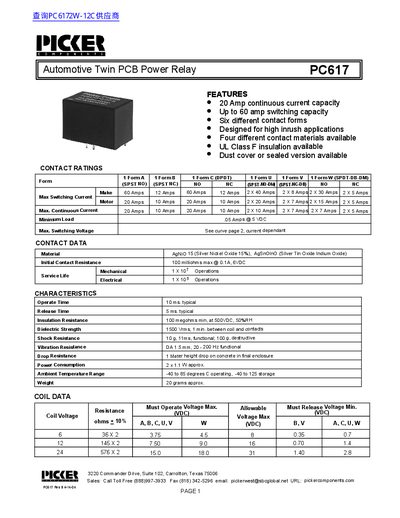

This document is a datasheet for the PICKER PC617 series of automotive twin PCB power relays. Key features include a 20 Amp continuous current capacity and up to 60 Amp switching capacity. The relays are designed for high inrush applications and offer six different contact forms (Form A through Form W) with various available contact materials.
The datasheet provides detailed electrical and mechanical ratings, including insulation resistance, dielectric strength, shock and vibration resistance, and coil data for voltages of 6V, 12V, and 24V. It also includes reference curves for maximum allowable ambient temperature versus power load limits.
| Continuous Current Capacity | 20 Amps |
|---|---|
| Switching Capacity | Up to 60 amp |
| Contact Forms | Six different contact forms (A, B, C, U, V, W) |
| Insulation Resistance | 100 megohms min |
| Dielectric Strength | 1500 Vrms |
| Shock Resistance (Functional) | 10 g, 11ms |
| Ambient Temperature Range | -40 to 85 degrees C operating |
The PC617 relay is available in six different contact forms: Form A, Form B, Form C (DPDT), Form U, Form V, and Form W.
Four different contact materials are available, including AgNiO 15 (Silver Nickel Oxide 15%) and AgSnOInO (Silver Tin Oxide Indium Oxide).
The relay has a 20 Amps Max. Continuous Current rating.
