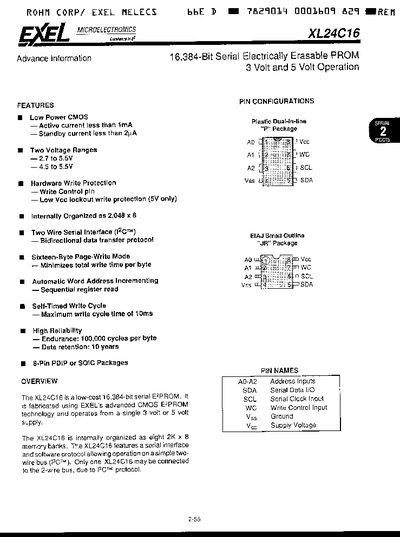

The EXEL XL24C16 is a low-cost, 16,384-bit (2K x 8) serial Electrically Erasable Programmable Read-Only Memory (EEPROM). It utilizes EXEL's advanced CMOS technology and operates from a single supply voltage of either 3 volts or 5 volts. The device features a Two-Wire Serial Interface compatible with the I2C protocol, allowing for bidirectional data transfer.
| Operating Voltage Range | 2.7 to 5.5V or 4.5 to 5.5V |
|---|---|
| Standby Current | less than 2uA |
| Active Current | less than 1mA |
| Data Endurance | 100,000 cycles per byte |
| Data Retention | 10 years |
The maximum write cycle time for the XL24C16 is 10ms.
Yes, the device includes a Write Control pin and low Vcc lockout for write protection.
