The document describes a pressure sensor product with voltage output, on-chip amplification and temperature compensation, and pre-calibration. It is suitable for applications such as home health care, vacuum cleaners, and washing machines.

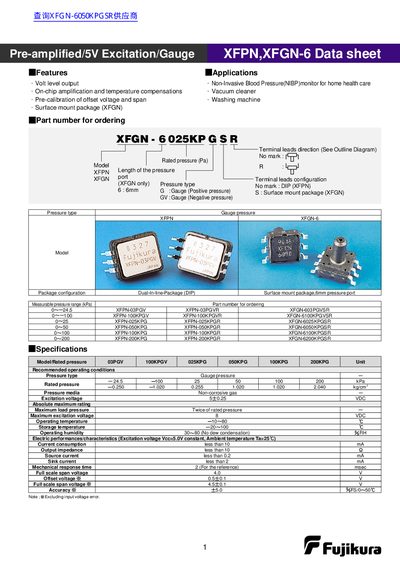

This document provides technical specifications, electrical characteristics, and mechanical dimensions for the Fujikura XFPN and XFGN-6 series of pre-amplified gauge pressure sensors. These devices are designed with on-chip amplification and temperature compensation to measure non-corrosive gas pressures in various applications.
| Excitation voltage | 5.0 VDC (Recommended) |
|---|---|
| Operating temperature range | -10 to +80 C |
| Storage temperature range | -20 to +100 C |
| Current consumption | Less than 10 mA |
| Output impedance | Less than 10 Ohms |
The recommended operating condition for excitation voltage is 5.0 VDC.
XFGN-6 refers to the surface mount package configuration.
