2SC5938A is a super mini package resin sealed silicon NPN epitaxial transistor for muting and switching applications.

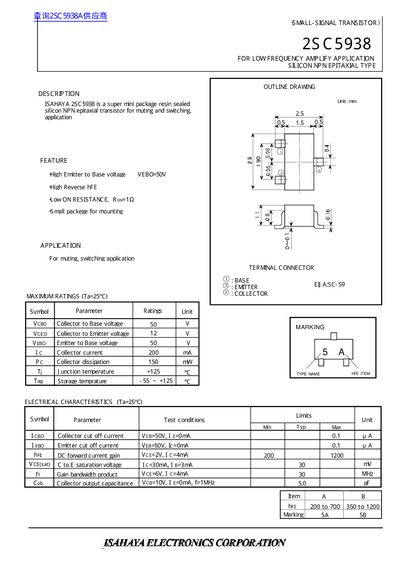

This document is a technical datasheet for the Isahaya 2SC5938A, a super mini package resin sealed silicon NPN epitaxial transistor. It is specifically designed for muting and switching applications in low-frequency circuits.
The datasheet provides detailed electrical characteristics, maximum ratings, and graphical performance curves. Key specifications include a collector current of up to 200 mA, a collector-to-emitter saturation voltage of 30 mV, and a DC forward current gain (hFE) ranging from 200 to 1200.
| Package Type | Super mini package resin sealed Unit |
|---|---|
| Transistor Type | Silicon NPN Epitaxial |
| Collector Current (Ic) | 200 mA |
| Collector Dissipation (Pc) | 150 mW |
| Junction Temperature (Tj) | +125 °C |
| DC Forward Current Gain (hFE) | 200 to 1200 |
| Gain Bandwidth Product (fT) | 30 MHz |
It is designed for muting and switching applications.
The maximum collector current is 200 mA, and the collector-to-base voltage rating is 50 V.
The hFE ranges from a minimum of 200 to a maximum of 1200.
