This document is about the specification of SAHA's DM series capacitors, including capacitance range, maximum voltage, size and other information

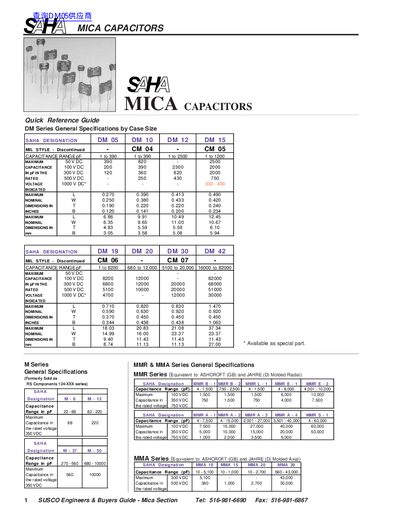

This document serves as a quick reference guide for SAHA Mica Capacitors. It provides detailed tables of general specifications for the DM Series (including case sizes like DM05, DM10, etc.) and the M/MMA Series, listing capacitance ranges, voltage ratings, and physical dimensions in both inches and millimeters.
The guide also explains the part numbering system used by SAHA, breaking down codes for series, temperature coefficients, rated voltages, capacitance values, tolerances, and package types. Additionally, it outlines key performance characteristics such as dissipation factor, insulation resistance, withstanding voltage, and results from vibration and moisture resistance tests.
| Capacitance Range (DM05) | 1 to 390 pF |
|---|---|
| Maximum Voltage Rating (DM Series) | Up to 1000 V DC |
| Temperature Coefficient Code C | -200 to +200 PPM/C |
The capacitance range for the DM05 series is from 1 to 390 pF.
Code C indicates a temperature drift of -200 to +200 PPM/C with a tolerance of +/- (0.5% +0.1pF).
The capacitors are designed to withstand 200% of their rated voltage for 1 to 5 seconds.
