Motorola MC830/MC930 Series Integrated Circuits Datasheet

This document is downloaded from www.AllDataSheet.com and describes the features and characteristics of some products.

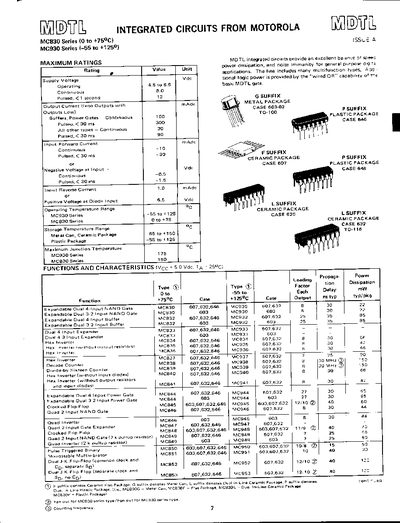

Motorola MC830/MC930 Series Integrated Circuits Datasheet - cover page
Brand
MDTL
Category
INTEGRATED CIRCUITS
Document type
Datasheet
Language
English
Pages
10
File format
PDF
File size
674 KB
Published
06 June, 2012
Updated
28 September, 2023
MD5 checksum
071230238123D0F3D327D27FCE675966
PDF
Motorola MC830/MC930 Series Integrated Circuits Datasheet PDF

About this manual

This document is a technical datasheet for Motorola's MDTL (Motorola Digital Technology Logic) family of integrated circuits. It covers two main product lines: the MC830 Series operating from 0 to +75°C and the MC930 Series operating from -55 to +125°C.

The document provides maximum ratings, electrical characteristics, and functional specifications for various logic types including NAND gates, buffers, inverters, counters, flip-flops, and multivibrators. It includes detailed pinout diagrams and truth tables for synchronous and asynchronous operations.

What's inside

  • Maximum Ratings
  • Functions and Characteristics
  • Logic Diagrams
  • Flip-Flops
  • Multivibrator

Specifications

Pulsed Output Current (<30 ms)300 mA
Operating Temperature Range (MC830 Series)0 to +75°C
Operating Temperature Range (MC930 Series)-55 to +125°C

Frequently asked questions

What is the operating temperature range for the MC830 series?

The MC830 series operates from 0 to +75 degrees Celsius.

What is the operating temperature range for the MC930 series?

The MC930 series operates from -55 to +125 degrees Celsius.

Download PDF (674 KB)
