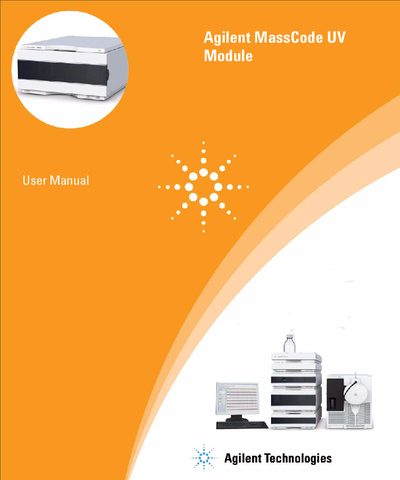

Agilent MassCode UV Module G5201A User Manual

About this manual

The Agilent MassCode UV Module is a component of the MassCode PCR system designed to UV-irradiate samples to release photocleavable tags prior to mass spectrometry. Key features include user-replaceable UV lamp and tubing tray assemblies for easy maintenance and fast replacement access.

This document covers the introduction, site requirements, installation procedures within the MassCode PCR System stack or existing HPLC stacks, status indicators, and detailed maintenance tasks such as cleaning, lamp exchange, leak correction, and replacing the leak handling system.

What's inside

• Introduction to the UV Module
• Overview of the Hydraulic Path
• Electrical Connections
• Site Requirements and Specifications
• Installing the UV Module
• Module Status Indicators
• Cleaning the Module
• Exchanging the UV Lamp Assembly

Specifications

Frequently asked questions

What is the function of the MassCode UV Module?

It is designed to UV-irradiate MassCode PCR samples in order to release photocleavable MassCode tags from amplicons prior to mass spectrometry.

Which components of the module are user-replaceable?

The module includes a user-replaceable UV lamp assembly and a user-replaceable UV module tubing tray assembly.

Where should the UV module be installed?

The module should be installed in the MassCode PCR system stack positioned just upstream of the mass spectrometer.
