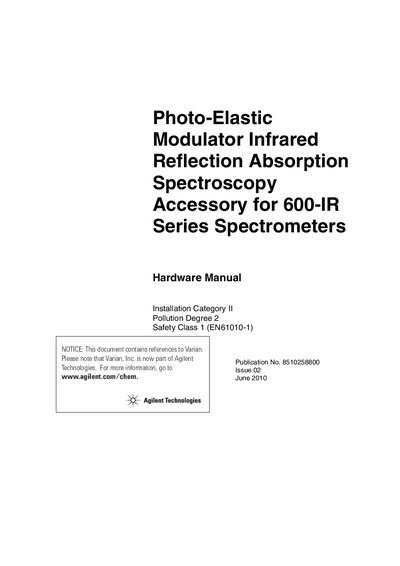

Agilent PEM-IRRAS Accessory Hardware Manual for 600-IR Series Spectrometers

This document describes the PEM-IRRAS accessory for 600-IR series spectrometers, including installation instructions, safety instructions, and precautions

Brand: Agilent
Document type: User Manual
Language: English
Pages: 32
File format: PDF
File size: 1.2 MB
Published: 06 June, 2012
Updated: 30 September, 2023
MD5 checksum: 95BE8392E7E5D4101782E6DA8DFFBEDF
PDF: Agilent PEM-IRRAS Accessory Hardware Manual for 600-IR Series Spectrometers PDF

About this manual

This document serves as the Hardware Manual for the Photo-Elastic Modulator Infrared Reflection Absorption Spectroscopy Accessory (PEM-IRRAS). It is designed to be used with Varian FT-IR spectrometers, specifically the 600-IR Series. The manual outlines safety practices regarding cryogenic cooling and electrical hazards, as well as laser safety precautions associated with the He-Ne laser operating at 632.8 nm.

What's inside

Safety Practices and Hazards
Cryogenic Cooling
Electrical Hazards
Laser Safety
Introduction
Hardware Overview
Basic Operation
Maintenance
Cleaning
Spare Parts

Specifications

Laser Wavelength	632.8 nm
Safety Class	Class 1 (EN61010-1)

Frequently asked questions

What safety precautions are needed for cryogenic cooling?

Liquid nitrogen is extremely cold and can cause damage to the human body; appropriate protective equipment must be used.

Can the laser beam cause eye damage?

Yes, direct viewing of the attenuated laser light could cause retinal (eye) damage during prolonged exposure.
