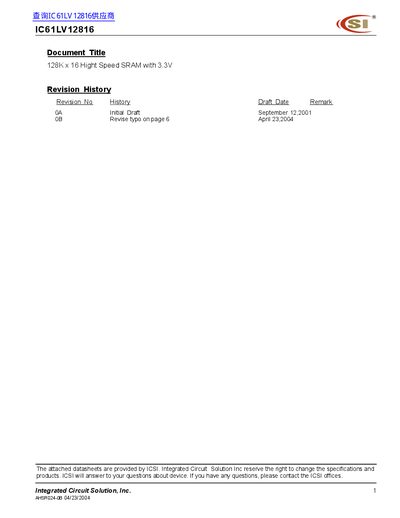

IC61LV12816 is a 128K x 16 high-speed static RAM with 3.3V supply and features such as CMOS low power operation.
The IC61LV12816 is a high-performance 2,097,152-bit static RAM organized as 131,072 words by 16 bits. Fabricated using ICSI's high-performance CMOS technology, it offers access times ranging from 8 to 15 ns and operates with a single 3.3V power supply (+/- 10%).
The device features fully static operation requiring no clock or refresh, TTL/CMOS compatible interface levels, and low-power CMOS standby modes. It is available in three JEDEC standard packages: 44-pin SOJ, 44-pin TSOP-2, and 48-pin TF-BGA.
| Memory Organization | 131,072 words x 16 bits |
|---|---|
| Total Capacity | 2,097,152-bit |
| Access Time Options | 8, 10, 12, and 15 ns |
| Supply Voltage | 3.3V + 10% |
| Operating Temperature (Commercial) | 0°C to +70°C |
| Operating Temperature (Industrial) | -40°C to +85°C |
| Power Dissipation | 2.0 W |
The device offers high-speed access times of 8, 10, 12, and 15 ns.
No, the device operates fully statically with no clock or refresh required.
It is packaged in 44-pin SOJ, 44-pin TSOP-2, and 48-pin TF-BGA.
