This data sheet provides the parameter information of the PHM004 product, including the maximum working voltage, input power, output power, working temperature range, storage temperature range, etc.

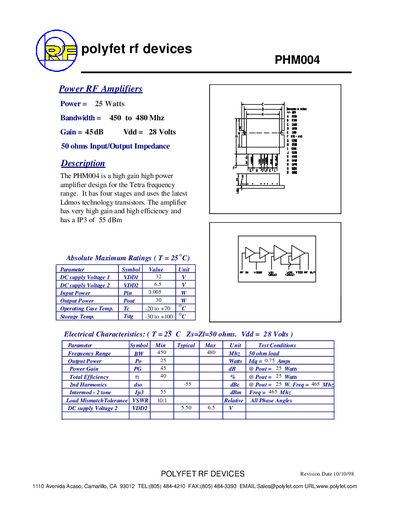

The document describes the PolyFET PHM004, a high gain and high efficiency Power RF Amplifier. It is specifically designed for the Tetra frequency range using four stages of LDMOS technology transistors. The device features an IP3 of 55 dBm and operates with a DC supply voltage of 28 Volts.
| Output Power (Pout) | 25 Watts |
|---|---|
| Frequency Range | 450 to 480 MHz |
| Power Gain (PG) | 45 dB |
| Total Efficiency | 40 % |
| Input/Output Impedance | 50 ohms |
| DC Supply Voltage (VDD) | 28 Volts |
| Intermodulation Product (IP3) | 55 dBm |
The amplifier operates in a frequency range from 450 to 480 MHz.
The PHM004 provides an output power of 25 Watts at a supply voltage of 28 Volts.
