MV1620-MV1650 is a varactor diode from MACOM, USA. It has a wide capacitance range, high quality factor, high tuning ratio, rated reverse breakdown voltage of 20Vdc and maximum operating temperature of 150°C

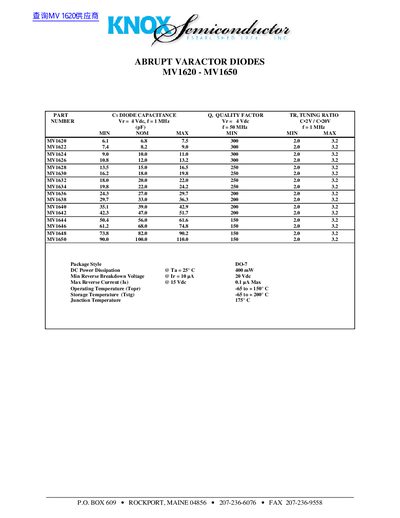

This document provides technical data for the ZSiaMV MV1620 to MV1650 series of abrupt varactor diodes. The datasheet lists specific part numbers with their corresponding capacitance values at various frequencies (4 Vdc, 50 MHz, and 1 MHz), along with quality factor and tuning ratio parameters.
Key electrical specifications include a minimum reverse breakdown voltage of 20 Vdc, maximum reverse current of 0.1 pA at 15 Vdc, and an operating temperature range from -65°C to +150°C. The components are housed in DO-7 packages with a DC power dissipation rating of 400 mW.
| Package Style | DO-7 |
|---|---|
| DC Power Dissipation | 400 mW @ Ta = 25°C |
| Min Reverse Breakdown Voltage | 20 Vdc |
| Max Reverse Current (Ir) | 0.1 pA Max @ 15 Vdc |
| Operating Temperature Range | -65 to +150°C |
| Storage Temperature Range | -65 to +200°C |
The devices operate from -65 to +150° C.
The maximum reverse current is 0.1 pA.
The minimum reverse breakdown voltage is 20 Vdc.
