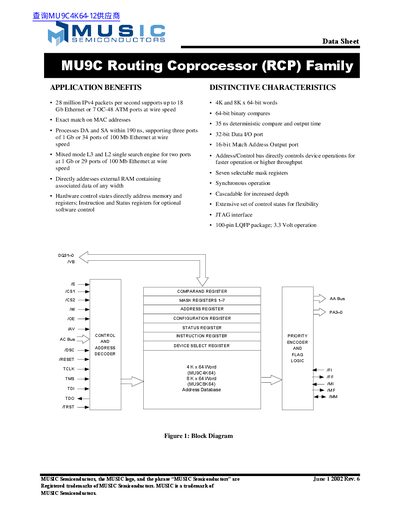

MUSIC Semiconductors MU9C Routing Coprocessor Family Data Sheet

MU9C4K64/8K64 is a high-speed network search engine from MUSIC Semiconductors, supporting 28 million IPv4 packets per second at wire speed, and maximum 18 Gb Ethernet or 7 OC-48 ATM ports.

Brand: MUSIC
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 30
File format: PDF
File size: 581 KB
Published: 06 June, 2012
Updated: 01 October, 2023
Model: MU9C
MD5 checksum: ADC4492154F4B63EB6C17039FF66B3B4
PDF: MUSIC Semiconductors MU9C Routing Coprocessor Family Data Sheet PDF

About this manual

The MU9C RCP family consists of 4K and 8K x 64-bit Routing Coprocessors with a 32-bit wide data interface. The device is designed for use in layer 2 switches to provide very high throughput address translation using tables held in external RAM.

What's inside

Application Benefits
Distinctive Characteristics
General Description
Operational Overview
Pin Descriptions

Frequently asked questions

What is the maximum packet processing speed of this device?

The device supports up to 28 million IPv4 packets per second.

How long does it take for the device to process destination and source addresses?

It processes DA and SA within 190 ns.
