This document describes the features and characteristics of the TR9C1710 product. The TR9C1710 is a high-performance chip that offers fast searching and downloading capabilities. It utilizes advanced technology to provide stable and reliable performance.

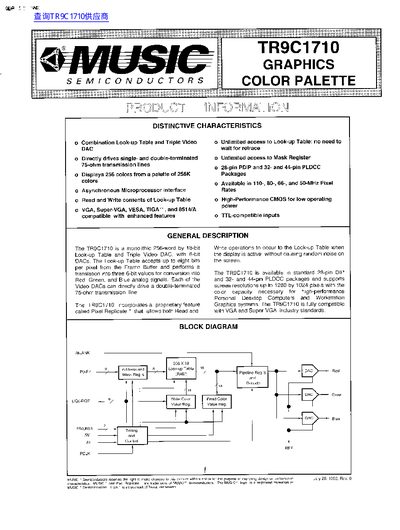

The TR9C1710 is a monolithic graphics controller featuring a 256-word by 18-bit Look-up Table and three 6-bit Digital-to-Analog Converters (DACs). It accepts up to eight bits per pixel from the frame buffer and translates them into Red, Green, and Blue analog signals. The device supports resolutions up to 1280x1024 pixels and is fully compatible with VGA, Super-VGA, VESA, TIGA, and 8514/A industry standards.
| Look-up Table Size | 256-word by 18-bit |
|---|---|
| DAC Configuration | Triple Video DAC with 6-bit DACs |
| Maximum Resolution | 1280 by 1024 pixels |
| Pixel Rates | 50, 66, 80, and 110 MHz |
| Compatible Standards | VGA, Super-VGA, VESA, TIGA, 8514/A |
It is a monolithic 256-word by 18-bit Look-up Table and Triple Video DAC.
It is available in 28-pin PDIP, 32-pin PLDCC, and 44-pin PLDCC packages.
