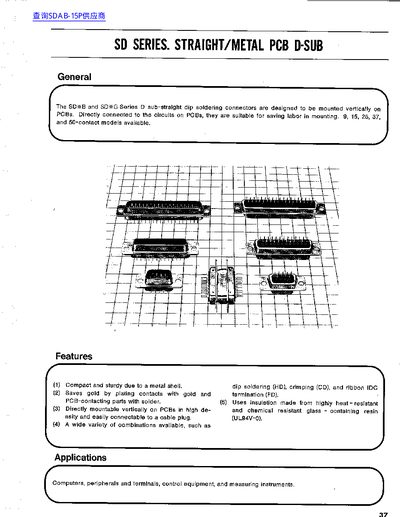

The document describes the SDB and SDXG Series D-sub straight dip soldering connectors designed for vertical mounting on PCBs. These connectors are suitable for computers, peripherals, control equipment, and measuring instruments due to their compact metal shell design and direct connection capability.
Available in 9, 15, 25, 37, and 50-contact models, the series supports dip soldering (HD), crimping (CD), and ribbon IDG termination. The connectors feature gold-plated contacts to save costs and utilize highly heat-resistant glass-containing resin insulation rated UL94V-0.
| Current Rating | 3A |
|---|---|
| Voltage Rating | AC 50V |
| Insulation Resistance | 5000MQ or more |
| Contact Resistance | 15m ohms or less |
| Withstanding Voltage | AC 1250V r.m.s./1 min. |
| Insulator Material | PBT (GE Valox) |
| Shell Material | Steel nickel-plating |
The connectors have a current rating of 3A.
They can withstand AC 1250V r.m.s. for one minute.
The shell is steel with nickel-plating, and the insulator is PBT 3 (GE Valox) Black.
