LTO-DMS MDD310-08V thru MDD310-22V handbook

This datasheet provides the maximum ratings, characteristic values, applications and advantages of LTO-DMS MDD310-08V to MDD310-22V diode/diode modules.

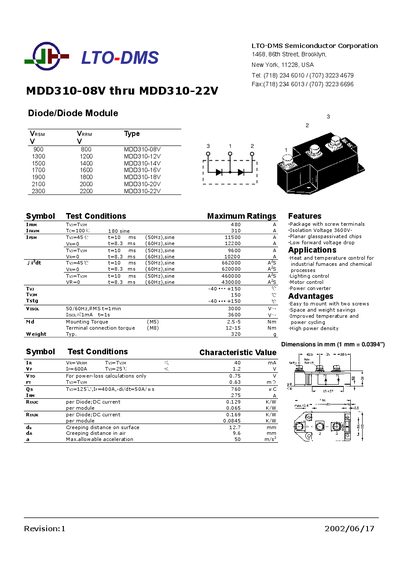

LTO-DMS MDD310-08V thru MDD310-22V handbook - cover page
Brand
LTO-DMS
Category
diode
Document type
Datasheet
Language
English
Pages
1
File format
PDF
File size
424 KB
Published
06 June, 2012
Updated
30 September, 2023
MD5 checksum
5415FE84C7651748C9FBBB868652E3E9
PDF
LTO-DMS MDD310-08V thru MDD310-22V handbook PDF

About this manual

This document is a technical datasheet for the LTO-DMS Semiconductor Corporation MDD310-08V through MDD310-22V Diode/Diode Module. The product line includes models rated from 800V to 2200V, designed with planar glasspassivated chips and screw terminals.

What's inside

  • Maximum Ratings
  • Features
  • Applications
  • Advantages
  • Electrical Characteristics

Specifications

Isolation Voltage3600V~
Forward Voltage Drop (Typical)1.2 Vv
Mounting Torque (M5)2.5-5 Nm
WeightTyp. 320 g

Frequently asked questions

What is the maximum allowable acceleration?

The maximum allowable acceleration is 50 m/s².

What are the maximum allowable operating temperatures for this diode module?

The device can operate from -40 C to +150 C.

How much torque is required when tightening the M8 terminal connections?

You must apply 12-15 Nm of torque to the terminals.

What is the typical weight of this diode module?

The module weighs approximately 320 g.
