Agilent Xcalibur Gemini Single Crystal Diffractometer User Manual

This manual describes the operation of the Xcalibur Gemini (including Ultra) single crystal diffractometers.

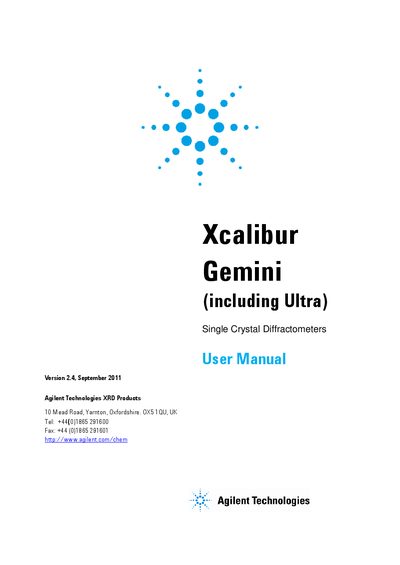

$Agilent Xcalibur Gemini Single Crystal Diffractometer User Manual - cover page$

Brand: Agilent
Document type: User Manual
Language: English
Pages: 71
File format: PDF
File size: 1.1 MB
Published: 06 June, 2012
Updated: 30 September, 2023
MD5 checksum: F2E4B99841884EF69047BD871063E4F8
PDF: Agilent Xcalibur Gemini Single Crystal Diffractometer User Manual PDF

About this manual

This user manual covers the operation of Agilent Technologies XRD Products, specifically the Xcalibur and Gemini Single Crystal Diffractometers. It includes configurations with ENHANCE or ULTRA X-ray sources and Eos, Atlas, or Titan CCD detectors.

The document details safety precautions regarding electrical hazards, radiation, and mechanical handling. It outlines system start-up procedures, warm-up routines for the X-ray tube, and emergency shutdown protocols. Additionally, it provides maintenance schedules ranging from weekly to yearly intervals and instructions for replacing components like X-ray tubes and collimators.

What's inside

Health and Safety Information
System Overview
Specifications
Technical Description
Installation and Setting to Work
Operation
Maintenance Schedules
Trouble Shooting

Specifications

AC Mains Voltage Requirements	= 1/N AC 230 V 50/60 Hz
Power Consumption	4200 Watts

Frequently asked questions

Who is the manufacturer of this manual?

The document is published by Agilent Technologies.

What safety class does this instrument belong to?

This product is classified as a Safety Class 1 instrument.
