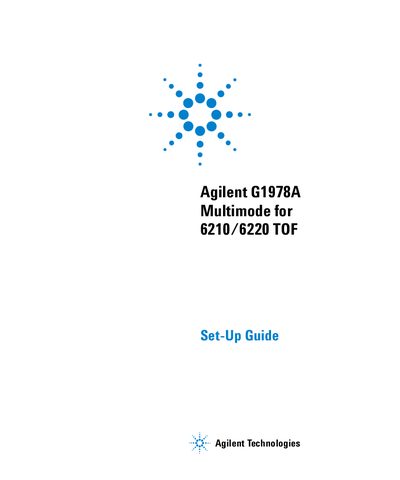

Agilent G1978A Multimode for 6210/6220 TOF Set-Up Guide

This manual introduces the installation, configuration and maintenance of Agilent G1978A Multimode for 6210/6220 TOF

Brand: Agilent
Document type: Installation Guide
Language: English
Pages: 68
File format: PDF
File size: 3.3 MB
Published: 06 June, 2012
Updated: 30 September, 2023
Model: G1978A
MD5 checksum: C9A21427037D1CE7B4C19AA7F092DA69
PDF: Agilent G1978A Multimode for 6210/6220 TOF Set-Up Guide PDF

About this manual

This document serves as a set-up guide for installing the Agilent G1978A Multimode Source on 6210 or 6220 TOF instruments. It details the necessary hardware modifications, including removing existing electronics and installing new cables and control boards.

The guide also covers software requirements, providing steps to upgrade TOF software and firmware to ensure compatibility with the multimode source. Finally, it includes procedures for installation verification through autotuning and creating specific methods.

What's inside

Installation
Remove TOF E-Tub Electronics
Change Firmware Chips
Install Cables
Attach Multimode Source
Install Nebulizer Connections
Changing Sources
Upgrade TOF Software
Upgrade TOF Firmware
Installation Verification

Specifications

Supported TOF Software Version	A.02.00 or A.02.01 with G1978-10004 patch
Supported Acquisition Software Version	MassHunter Workstation Acquisition for TOF B.01.03 or higher
Manual Part Number	G1978-90060

Frequently asked questions

What software is required to support the G1978A Multimode Source?

The multimode source requires TOF Software A.02.00 or A.02.01 with patch G1978-10004 and MassHunter Workstation Acquisition for TOF B.01.03 or higher.

How do I convert between different ion sources?

The guide contains specific instructions to convert between the ESI, APCI, APPI, and multimode ion source.
